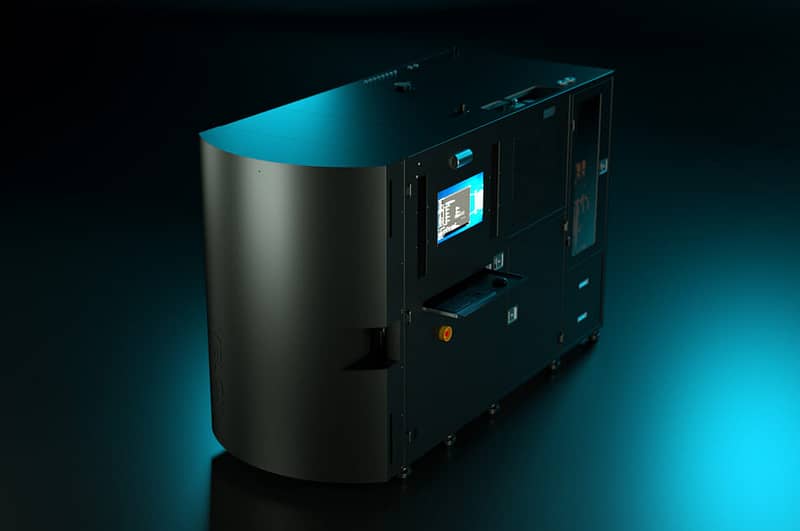

VELOX

A compact speed coating demon

The Velox delivers the fastest plasma nitriding process and rapid cooling solution on the market today. It’s the ideal solution for manufacturers that need rapid cycle times to achieve the greatest cost efficiency.

FEATURE OVERVIEW

  • Fast Deposition Rates
  • Quick Change
  • Remote Support
  • Multiple Coating Recipes
  • Low Profile

MACHINE OPTIONS

  • Single Chamber Option with 10″ and 12″ Versions
  • Inner Armor World Remote Support and Monitoring
  • Pre-loaded Recipes
  • Custom designed research and development tool

SPECS

small size, big speed

DIMENSIONS:

Length:
Clearance limit 220″ (5580mm)

Width:
Clearance limit 159″ (4039mm)

Height:
Clearance limit 96″ (2439mm)

Footprint:
Actual Machine 124″ (3150mm) x 52″ (1321mm) x 88″ (2235mm)

KEY MACHINE SPECS:

Deposition Rate:
Up to 0.5µm per minute

Max Chamber Size:
10″ Process Zone 10″ (254mm) x 36″ (914.4mm) • 12″ Process Zone 12″ (304.8mm) x 40″ (1016mm)

Power Requirements:
208V 100A 3 Phase 5 Wire with Ground (37.5 kVA) Chassis Ground Bar Required

Coating Types:
PECVD, Nitriding etc.

Dimensions

Length:

Clearance limit 220″ (5580mm)

Width:

Clearance limit 159″ (4039mm)

Height:

Clearance limit 96″ (2439mm)

Footprint:

Actual Machine 124″ (3150mm) x 52″ (1321mm) x 88″ (2235mm)

Key Machine Specs

Deposition Rate:

Up to 0.5µm per minute

Max Chamber
Size:

10″ Process Zone 10″ (254mm) x 36″ (914.4mm) • 12″ Process Zone 12″ (304.8mm) x 40″ (1016mm)

Power Requirements:

208V 100A 3 Phase 5 Wire with Ground (37.5 kVA) Chassis Ground Bar Required

Coating Typess:

PECVD, Nitriding etc.
